The electric surface resistance of the Wera ESD material is ≤ 109 ohm. This securely protects components against electrostatic energy and associated damage.
Kraftform Micro ESD Big Pack 1 Screwdriver set for electronic applications
05134019001, 25 pieces- ESD-safe tool thanks to surface resistance of ≤ 109 Ohm
- The fast-turning zone just below the rotating cap allows rapid spinning.
- The Wera Black Point tip offers an exact fit and optimum corrosion protection
- Multi-component Kraftform Micro handles for fast and ergonomic screwdriving
- Included profiles especially suitable for servicing mobile phones, tablets and laptops/desktops
- Take it easy tool finder: colour coding according to profile and size
- Storage and transport in a robust textile bag, so the tool is well protected and always close at hand
Product features
For mobile phones, tablets and laptops/desktops.
The screwdriver profiles included in this set are especially suitable for service works on mobile phones, tablets and laptops/desktops.
High protection

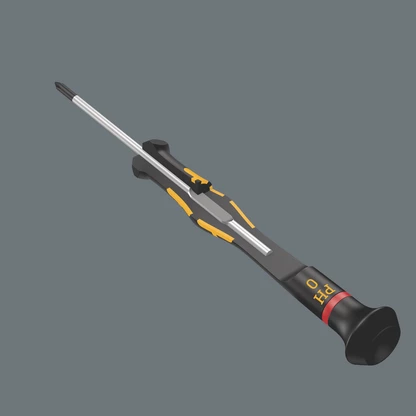

Kraftform Micro handle
Multi-component screwdriver handle for ergonomic working.
The precision zone
The precision zone directly above the blade gives the user a better feel for the right rotation angle during fine adjustment work.
The power zone
The power zone has integrated soft zones near the blade tip to ensure high torque transfer for loosening or tightening screws without losing contact with the screw.
The fast-turning zone
The fast-turning zone just below the rotating cap allows rapid spinning.
Take it easy Tool Finder
Screwdrivers with Take it easy tool finder: colour coding according to profile and size stamp.
Find out more about this product
Product description
Electrostatically secured Wera Micro screwdriver 25-piece set. The included screw profiles are especially suitable for the use on mobile phones and tablets. Safe protection against electrostatic energy and associated damage. By supporting the hand on the rotating cap, and by the fast rotating zone below the rotating cap, lightning fast turning is possible. Time-consuming hand switching is eliminated. The power zone with integrated soft zones ensures the transmission of high tightening and loosening moments. Precision zone for correct rotation angles whilst adjusting. The Black Point tip provides fitting accuracy and optimum corrosion protection. Take it easy tool finder with size stamping and colour coding by profile to find the required tool quickly and easily. Storage and transport in a robust textile pouch, so the tool is well protected and always close at hand.
Tools in this set
1PH 000 x 40 mm
(1)
(2)
05030117001
1PH 00 x 40 mm
(1)
(2)
05030118001
1PH 0 x 40 mm
(1)
05030119001
1PH 1 x 80 mm
05030112001
(1) Size 0 modified according to JCIS 0 (Japanese Camera Industrial Standard)
(2) On the output side, the blade is turned to a nominal length of 10 mm
1# 1 x 40 mm
05030109001
1TX 8 x 60 mm
05030404001
1TX 10 x 60 mm
05030406001
1TX 2 x 40 mm
05030158001
1TX 3 x 40 mm
05030159001
1TX 4 x 40 mm
05030120001
1TX 5 x 40 mm
05030121001
1TX 6 x 40 mm
05030122001
1TX 6 BO x 60 mm
05030113001
1TX 8 BO x 60 mm
05030114001
1m x 40 mm
05030080001
100 x 40 mm
05030081001
1F x 40 mm
05030082001
10 x 40 mm
05030083001
1PL 1.1 x 40 mm
05030330001
1PL 1.4 x 40 mm
05030331001
13 x 60 mm
05030414001
10.16 x 0.8 x 40 mm
05030099001
10.23 x 1.5 x 40 mm
05030101001
11 x 3.5 x 50 mm
05027450001
Applications:
ESD
