The electric surface resistance of the Wera ESD material is ≤ 109 ohm. This securely protects components against electrostatic energy and associated damage.
1550/6 ESD Screwdriver set and rack for electronic applications
05030180001, 6 pieces- ESD-safe tool thanks to surface resistance of ≤ 109 Ohm
- The fast-turning zone just below the rotating cap allows rapid spinning.
- The Wera Black Point tip offers an exact fit and optimum corrosion protection
- Multi-component Kraftform Micro handles for fast and ergonomic screwdriving
- Includes practical rack for tidy storage of the screwdrivers
Product features
Wera ESD Tools
The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies.
High protection
The precision zone
The precision zone directly above the blade gives the user a better feel for the right rotation angle during fine adjustment work.
The power zone
The power zone has integrated soft zones near the blade tip to ensure high torque transfer for loosening or tightening screws without losing contact with the screw.
The fast-turning zone
The fast-turning zone just below the rotating cap allows rapid spinning.
Rotating cap and fast-turning zone
The fast-turning zone just below the rotating cap allow rapid twisting. This makes time-consuming grip adjustments as with other conventional precision screwdrivers unnecessary.

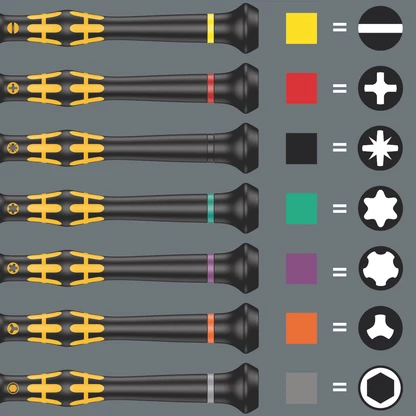

Take it easy Tool Finder
Screwdrivers with Take it easy tool finder: colour coding according to profile and size stamp.
Find out more about this product
Product description
ESD-safe Wera Micro screwdriver set. Dependable protection against electrostatic energy and associated damage. Rapid twisting results from fixing the hand on the head and using the fast-turning zone just below. This makes time-consuming grip adjustments unnecessary. Power zones with integrated soft sections ensure the transfer of high loosening and tightening torque; a precision zone for the right rotation angle during fine adjustment work. The Black Point tip offers optimised corrosion protection and an exact fit.
Tools in this set
Part number: 05030180001
1PH 000 x 40 mm
(1)
(2)
05030117001
1PH 00 x 40 mm
(1)
(2)
05030118001
1PH 0 x 40 mm
(1)
05030119001
(1) Size 0 modified according to JCIS 0 (Japanese Camera Industrial Standard)
(2) On the output side, the blade is turned to a nominal length of 10 mm
10.35 x 2.5 x 40 mm
05030108001
1m x 40 mm
05030080001
Applications :
ESD
