The fine tooth mechanism, with its 60 teeth, allows a small return angle of only 6° – ideal for precision work.
- Drop-forged, full-steel ratchet design
- For screwdriving in very confined working situations
- Zyklop sockets 8790 FA for direct insertion in the Zyklop Mini 2
- Bit holder, 9 sockets, 14 bits and 1 adaptor
- In robust textile box
Product features

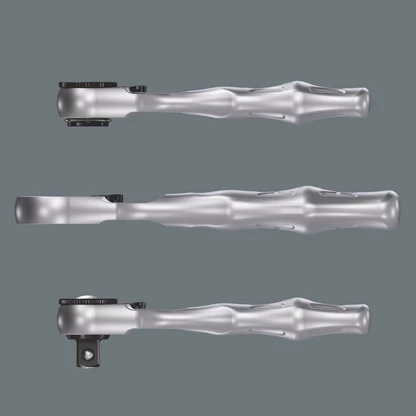

The Zyklop Mini Ratchets
For all difficult-to-access applications.
The Zyklop Mini
Rapid screwdriving
High working speeds can be attained with the Zyklop Mini bit ratchet. The thumb wheel is important, enabling more rapid screwdriving, and the lever of the Zyklop Mini only needs to be used for the final tightening of the screw.
Slim design
Its slim design makes it ideal for all particularly confined working situations.
Is such a small tool sufficiently resilient?
The Zyklop Mini 1 can withstand a torque up to 65 Nm. That is far more power than can normally be transferred to such a small tool.
What parts can be connected to the Zyklop Mini 1?
Bits and sockets. Bits can be connected directly. However, a holder can be connected first and then the bit can be attached to this. This then serves as an extension with a free-turning sleeve. An adaptor e.g. Wera 870/1 is needed for sockets – ¼" hexagonal on a square drive (included in the Bit-Check and with the individual Zyklop Mini 1 in the set).
Zyklop Mini 2

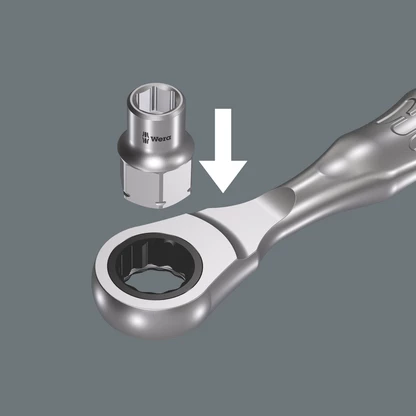

The Zyklop Mini 2 is suitable for the direct attachment of the special Wera Zyklop sockets 8790 FA. These sockets feature a very low height, ideal for confined working spaces.
Find out more about this product
Product description
Ratchets and screws in a Kraftform Kompakt format. These drop-forged, full-steel ratchets, Zyklop Mini 1 and 2, combine filigree design with incredible robustness. For particularly rapid screwdriving in confined working situations. Zyklop Mini 1 or Zyklop Mini 2 can be used whenever screwdriving with power tools or conventional hand tools is unfeasible for lack of space. 1 bit ratchet Zyklop Mini 1; suitable for the take-up of bits with ¼" hexagon head drive as per DIN ISO 1173-C 6.3 and E 6.3 and Wera connecting series 1 and 4; also possible to use ¼" sockets by attaching the Wera adaptor 870/1. 1 socket ratchet Zyklop Mini 2; suitable for the direct attachment of Wera Zyklop special sockets 8790 FA.
Tools in this set
8001 A Bit Ratchet 1/4"
11/4" x 87 mm
1107 mm
05003660001
11/4" x 78 mm
05051274001
1PH 1 x 25 mm
05072070001
1PH 2 x 25 mm
05072072001
1PZ 1 x 25 mm
05072080001
1PZ 2 x 25 mm
05072082001
1TX 10 x 25 mm
05066485001
1TX 15 x 25 mm
05066486001
1TX 20 x 25 mm
05066487001
1TX 25 x 25 mm
05066488001
1TX 30 x 25 mm
05066490001
1TX 40 x 25 mm
05066491001
13 x 25 mm
05056315001
14 x 25 mm
05056320001
15 x 25 mm
05056325001
16 x 25 mm
05056330001
14 mm
05003665001
15 mm
05003667001
15.5 mm
05003668001
16 mm
05003669001
17 mm
05003670001
18 mm
05003675001
110 mm
05003690001
112 mm
05003684001
113 mm
05003685001
Hook and Loop Fastener Strip 120
1120 x 50 mm
