We wanted working with torque wrenches to be simple and accurate which is why we developed the Click-Torque wrenches. With the ability to set and save the default values and with the unmistakable, robust Wera design, these torque wrenches are the ideal tools for all bolting applications that require torque-controlled tightening (clockwise torque wrenches) and tightening and loosening (torque wrenches for insert tools).
Click-Torque X 5 torque wrench for insert tools, 60-300 Nm
05075655001, 14x18 x 60-300 Nm- For 14x18 mm interchangeable insert tools
- Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
- Audible and tactile release mechanism when the set torque value is reached
- Measuring range: 60-300 Nm; precise to ± 3% as per DIN EN ISO 6789-1:2017-07
- Very robust design with ergonomic 2-component handle suitable for right and left-handed use
Product features
Click-Torque Wrench series

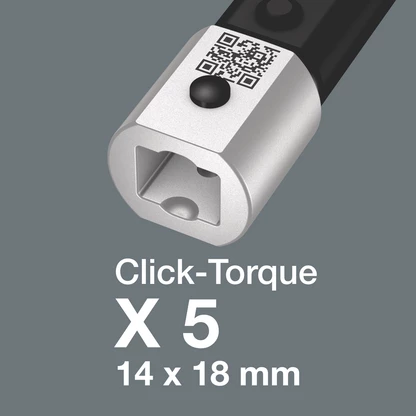

Drive 14x18 mm
For torque wrenches from the Click-Torque X series with 14x18 mm mounting.
Exact
Precision of ±3 % as per DIN EN ISO 6789-1:2017-07.
Easy and safe

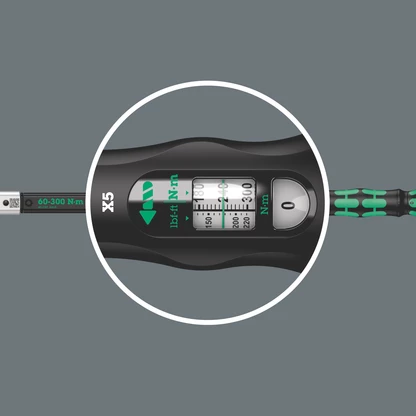

Easy setting and saving of the desired torque value; easy to read on main and fine scales.
Setting with Speed
With audible and tactile locking when the scale values are reached.

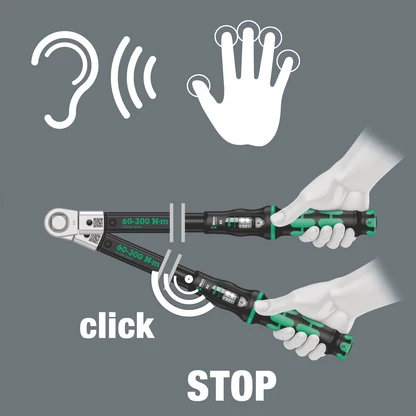

Release mechanism
On reaching the desired torque value, an audible and tactile mechanism is triggered.
Product details
Facts and figures
Part number
05075655001
Mounting size
14x18
Main scale measuring range Nm
60-300
Main scale graduation Nm
1.0
Subscale measuring range lbf. ft.
45-220
Torque wrench length mm
578
Stichmaß Prüfaufsatz mm
25.5
Strecke Kraftanlagepunkt/Prüfgerät-Achse mm
525.0
Handle length G2 mm
140
Clock diameter mm
47
Diameter of the head mm
32
Height ratchet head H2 mm
26
Torque wrench length (inches) inch
22 7/16"
Handle length G2 (inches) inch
5 33/64"
Watch diameter (inches) inch
1 27/32"
Tip diameter (inches) inch
1 17/64"
Ratchet head height H2 (inches) inch
1 1/32"
Hauptskala Messbereich Min Nm
60.0
Hauptskala Messbereich Max Nm
300.0
Nebenskala Messbereich Min lbf. ft.
45.0
Nebenskala Messbereich Max lbf. ft.
220.0
Note
(1)
Add to watch list
(1)
Sk = Actual dimension of the test attachment; lk = Distance from the force application point to the test device axis
Find out more about this product
Product description
Click-Torque wrench in the unmistakable, robust Wera design with high accuracy as per DIN EN ISO 6789-1: 2017-07. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values also facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque is reached. For right and left-hand use and with square insert 14x18mm for insert tools.
