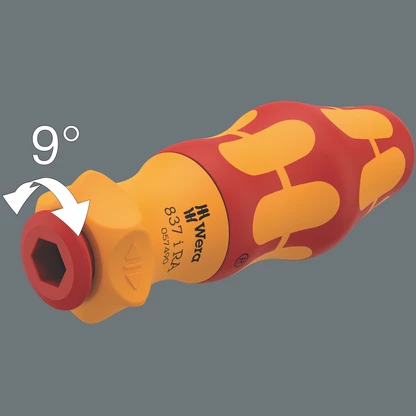

The integrated ratchet with fine toothing (40 teeth and a return angle of 9°) eases and accelerates screwdriving without having to reposition the tool.
- Individually tested tools as per IEC 60900
- One Kraftform Kompakt VDE 837 i RA bladeholding screwdriver with ratchet functionality (40 teeth, 9° return angle) for interchangeable blades, one 817 VDE bladeholding screwdriver for interchangeable blades
- One 410 i VDE A RA T-handle adapter screwdriver with ratchet functionality for 1/4" sockets and 1/4" bit sockets
- One Kraftform Kompakt A VDE 712 i adapter blade (1/4" external hexagon to 9 mm external hexagon) for 1/4" sockets and bit sockets
- VDE blades (157 mm length) with practical spinning function, anti-roll protection and Take it easy tool finder: colour coding by profile and laser-engraved size indication
- 9 Zyklop sockets with 2-component insulation (yellow insulation core, which becomes visible if the outer red VDE insulation layer is damaged)
- Space-saving and safe storage in a textile box, which can also be docked onto the Wera 2go system
Product features

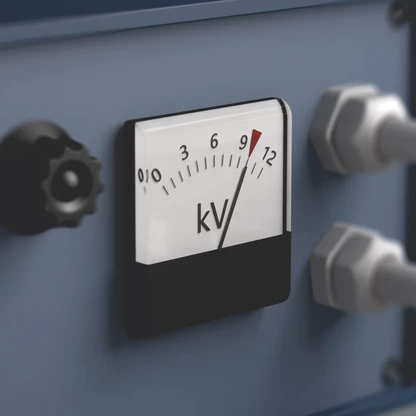

Individually tested
The individual testing at 10,000 volts, in accordance with IEC 60900, ensures safe working with loads up to 1,000 volts.
The 837 i RA bladeholding screwdriver with ratchet functionality

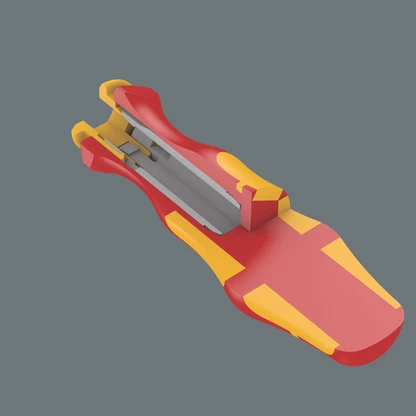

The 817 VDE bladeholding screwdriver
The bitholding screwdriver is suitable solely for Wera VDE blades. Kraftform Plus handle for comfortable ergonomic screwdriving, avoiding blisters and calluses. Hard handle zones for high working speeds, while soft handle zones guarantee a high torque transfer.

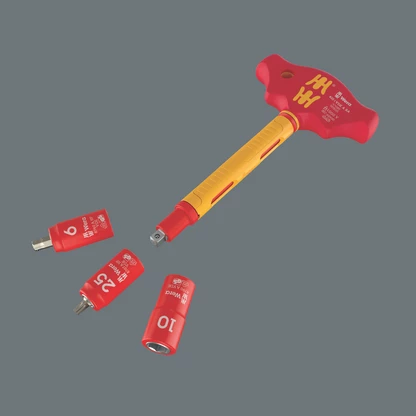

For Wera VDE sockets and bit sockets
The VDE-insulated T-handle 410 i VDE A RA adapter screwdriver may only be used with the 1/4" VDE bit sockets and sockets from the Wera Zyklop VDE series 8740, 8760, 8767 and 8790.

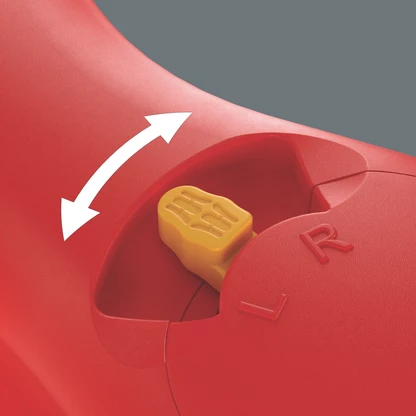

Reversible clockwise/counterclockwise
The direction of the fine-tooth ratchet mechanism can easily be changed via the smooth switch lever.

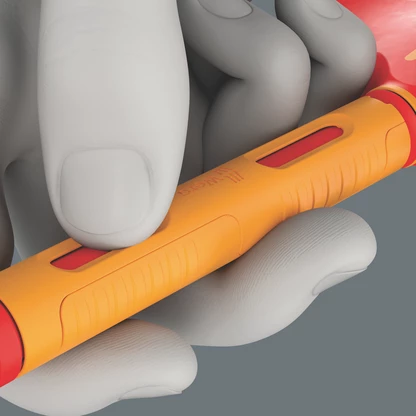

Fast-rotating sleeve with recesses
The recesses in the fast-rotating sleeve allow resistance to be generated by finger force. This allows the ratchet mechanism to be used even at low resistance of the screw.

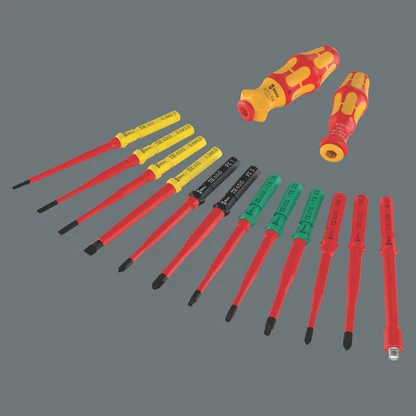

Kraftform Kompakt VDE blades
The 157 mm length blades are suitable for Wera Kraftform Kompakt handles with 9 mm hexagonal blade mounting.
Find out more about this product
Product description
The all-rounder set for VDE applications. Two bitholding screwdrivers 837 i RA and 817 VDE for Kraftform Kompakt VDE blades (837 i RA with ratchet functionality for accelerated screwdriving). 11 Kraftform Kompakt blades for slotted screws, Phillips-head screws (Phillips and Pozidriv) and TORX® screws. Even low-lying screw and spring elements can be reached thanks to the reduced blade diameter. The Take it easy tool finder (colour coding by profile as well as laser-engraved size indication) makes it easy to reach for the required blade. One T-handle with ratchet functionality for 1/4" sockets. The recesses in the fast-rotating sleeve on the blade allow resistance to be generated by finger force which allows the ratchet mechanism to be used even at low resistance of the screw. 9 sockets offer increased safety thanks to the 2-component insulation with a yellow insulation core under an outer red insulation layer. The inner yellow insulation layer becomes visible if the outer red VDE insulation layer is damaged. All tools are individually tested at 10,000 Volt as per IEC 60900. Space-saving and safe storage in a textile box. The textile box can be docked directly onto the Wera 2go transport system or attached to the workshop trolley, tool wall, etc with the included hook and loop fastener strip.
Video
Tools in this set
19 x 115 mm
05057490001
19 x 98 mm
05003990001
11/4" x 130 mm
05005121001
10.4 x 2.5 x 157 mm
05006500001
11.2 x 6.5 x 157 mm
05006505001
10.6 x 3.5 x 157 mm
05006506001
10.8 x 4 x 157 mm
05006507001
1PH 1 x 157 mm
05006512001
1PH 2 x 157 mm
05006513001
1PZ 1 x 157 mm
05006526001
1PZ 2 x 157 mm
05006527001
1TX 15 x 157 mm
05006540001
1TX 20 x 157 mm
05006541001
1TX 25 x 157 mm
05006542001
11/4" x 154 mm
05006642001
15 x 41 mm
05005931001
15.5 x 41 mm
05005932001
16 x 41 mm
05005933001
17 x 41 mm
05005934001
18 x 41 mm
05005935001
110 x 41 mm
05005936001
111 x 41 mm
05005937001
112 x 41 mm
05005938001
113 x 41 mm
05005939001
1230 x 105 x 50 mm
05136551001
Applications:
Elektro / VDE
