The tools sit securely in the foam thanks to precise contour cutouts, but are easy to remove. The carefully designed arrangement of the tools ensures space-saving storage and quick access to each tool.
9751 Foam insert Kraftform Kompakt VDE set 1
05150151001, 28 pieces- Durable foam insert, each tool has its own place; two-coloured, missing tools will quickly be noticed
- High-quality, durable foam insert without chemical vapours
- 837 i RA VDE handle with ratchet functionality; for Kraftform Kompakt
- 817 VDE handle for Kraftform Kompakt interchangeable blades
- VDE blades (157 mm length) with practical spinning function, anti-roll protection and Take it easy tool finder: colour coding by profile and laser-engraved size indication
- 14 interchangeable blades with reduced blade diameter and integrated protective insulation (iS)
- Interchangeable blades with Take it easy Tool finder: Colour coding by profile and laser-engraved size indication
- Width x height x depth: without tools 344 x 30 x 392 mm, with tools 344 x 46 x 392 mm
Product features

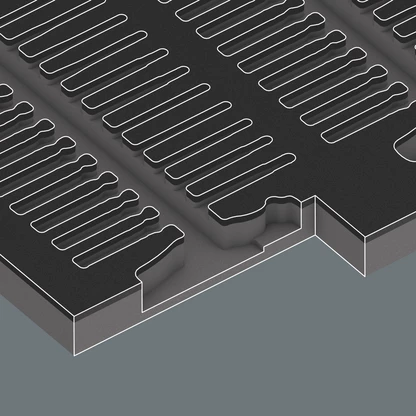

Safe storage and quick overview

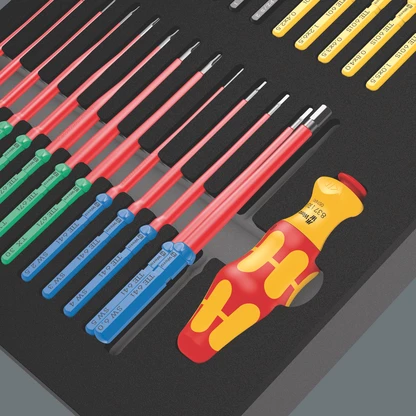

Two-coloured foam insert
After removing the tool the light grey second foam becomes visible and therefore missing tools are quickly identified.
Individually tested
Safe working at voltages up to 1,000 V is guaranteed as all tools are individually tested at 10,000 V as per IEC 60900.
The 837 i RA bladeholding screwdriver with ratchet functionality
The integrated ratchet with fine toothing (40 teeth and a return angle of 9°) eases and accelerates screwdriving without having to reposition the tool.
Rapid screwdriving
The ratchet mechanism also allows fast "spinning" while screwdriving.
The 817 VDE bladeholding screwdriver
For Wera Kraftform Kompakt VDE interchangeable blades. With multi-component Kraftform handle for high working speeds and ergonomic screwdriving.
Find out more about this product
Product description
Durable foam insert; two-coloured for quick identification of missing parts; suitable for the Tool Rebel roller cabinet. Equipped with one 837 i RA bladeholding screwdriver for Wera Kraftform Kompakt VDE interchangeable blades; with fine-toothed ratchet integrated in the handle (40 teeth/return angle 9°), one Kraftform 817 VDE bladeholding screwdriver for Wera Kraftform Kompakt VDE interchangeable blades, 26 Wera Kraftform Kompakt VDE interchangeable blades with Take it easy Tool finder: Colour coding by profile and laser-engraved size indication.
Video
Tools in this set
19 x 115 mm
05057490001
19 x 98 mm
05003990001
1PH 1 x 157 mm
05006512001
1PH 2 x 157 mm
05006513001
1PZ 1 x 157 mm
05006526001
1PZ 2 x 157 mm
05006527001
1# 1 x 157 mm
05006516001
1# 2 x 157 mm
05006517001
1# 1 x 157 mm
05006530001
1# 2 x 157 mm
05006531001
1TX 8 x 157 mm
05006532001
1TX 9 x 157 mm
05006533001
1TX 10 x 157 mm
05006534001
1TX 27 x 157 mm
05006538001
1TX 30 x 157 mm
05006539001
1TX 15 x 157 mm
05006540001
1TX 20 x 157 mm
05006541001
1TX 25 x 157 mm
05006542001
12.5 x 157 mm
05006518001
13 x 157 mm
05006519001
14 x 157 mm
05006520001
15 x 157 mm
05006521001
16 x 157 mm
05006522001
10.6 x 3.5 x 157 mm
05006506001
10.8 x 4 x 157 mm
05006507001
11 x 5.5 x 157 mm
05006508001
11.2 x 6.5 x 157 mm
05006505001
10.4 x 2.5 x 157 mm
05006500001
1344 x 30 x 392 mm
(1)
05137351001
(1) Attention: The foam insert does not fit in the previous model 05501051001 of the roller cabinet.
Applications:
Elektro / VDE
