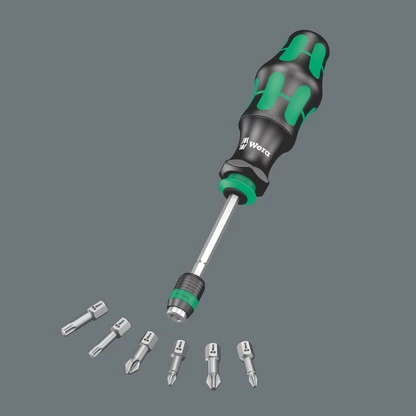

The sets come with a Kraftform handle, quick-release chuck and bits for manual and power tool operations.
- Kraftform holder with bayonet blade and Rapidaptor quick-release chuck
- Kraftform handle with anti-roll feature, multi-component and integrated magazine
- Tough viscous bits for universal use
- In robust pouch
- Retractable bayonet blade
Product features
Telescopic blade, integrated bit magazine, Rapidaptor technology
The sets in the series Kraftform Kompakt 20 are really something. A 2 position telescopic blade can be retracted into the handle for confined space operation or extended for more reach. It can also be removed and used as a 100 mm bit holder in the power tool. Six bits are conveniently integrated into a push-button opening bit magazine. The Rapidaptor technology ensures rapid one hand bit changes, press-in auto bit lock and a secure positioning when used in power tools thanks to the free-turning sleeve.
Manual and power tool operations
Handle/interchangeable blade system
The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications.
The telescopic blade I
When the unique telescopic blade is lowered into the handle, fast, easy screw-driving action is possible, even in the tightest spots!
The telescopic blade II
By pushing the clamping sleeve, the telescopic blade can be extended out of the handle and the compact tool becomes a full-sized screwdriver.
The telescopic blade III
If the clamping sleeve is pushed again the telescopic blade can be taken out of the handle, and be used as a machine bit adaptor.
Rapidaptor holder
Lightning-fast bit change without any extra tools. One-handed operation. With fast-rotating sleeve for easy wielding of the screwdriver.
Find out more about this product
Product description
Wera compact tools enable both manual as well as power tool operations at the same time. The handle/interchangeable blade system in a compact design with various blade tips in the smallest of spaces makes the user more mobile and flexible. Suitable for bits with ¼" hexagon head drive as per DIN ISO 1173-C 6.3 and E 6.3 (ISO 1173) and Wera connecting series 1 and 4. Comes with an adaptor, bayonet and Rapidaptor technology. Kraftform handle with anti-roll feature, multi-component for particularly ergonomic screwdriving. Integrated magazine for bit storage. In this way, the set replaces a 6-piece screwdriver set and reduces the equipment required to a minimum. The telescopic bayonet blade - which can be lowered into the handle - together with the quick-release chuck allows fast manual work even in confined installation situations when the blade is retracted. The blade can be extended by simply actuating the locking sleeve. The bayonet holder can then be used as a fully-fledged screwdriver. The bayonet blade can be removed and used as a power tool adaptor, but can also be retracted once again to its original position. Includes practical belt pouch.
Tools in this set
11/4" x 100 mm
05052504001
1PH 1 x 25 mm
05072070001
1PH 2 x 25 mm
05072072001
1PZ 1 x 25 mm
05072080001
1PZ 2 x 25 mm
05072082001
11 x 5.5 x 25 mm
05072059001
11.2 x 6.5 x 25 mm
05072061001
Hook and Loop Fastener Strip 70
150 x 70 mm
